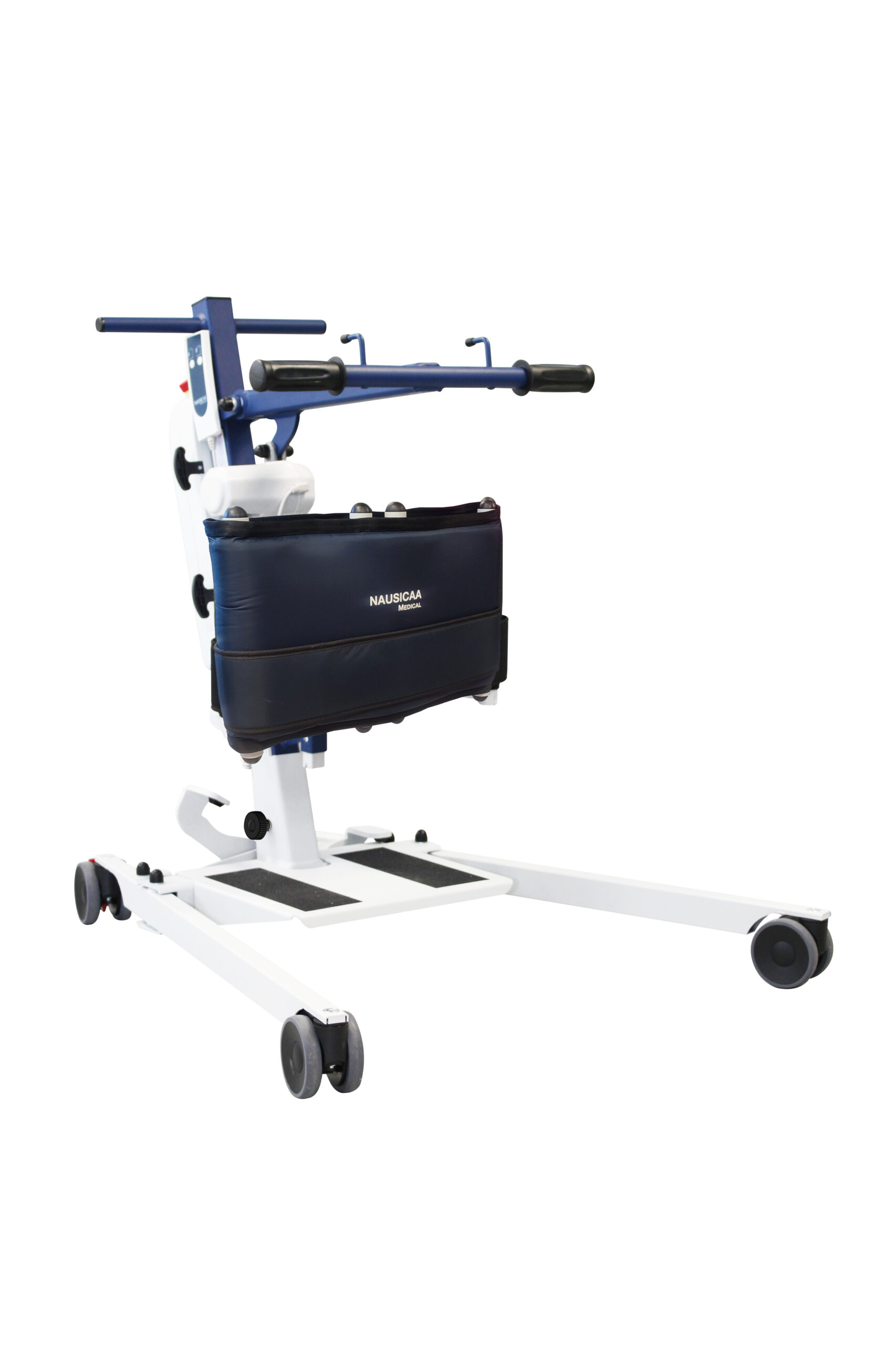

BLUE WAYUP 3 ECP SECABLE
mechanical or electrical spacing

The ideal compromise between efficiency and cost!

The BLUE WAYUP 3 uses a patented movement that takes care of partial or total tone loss.
of the patient’s legs. The patient must be able to place both feet flat.
The strap is positioned at waist level, and the hooks are adjusted by putting the strap in the right position.
tension with the patient’s back glued to the backrest.
The quick and complete deployment of the lifting arm allows you to move from the seated to the raised position.
in accordance with the patient’s comfort and pathology.
Once the legs have been secured by the ergonomic knee rest, the lifting movement is easy and comfortable.
then feasible.
Rolling quality has been improved thanks to 100-diameter wheels with double ball bearings.
The range is equipped with two emergency chutes, one manual and one electric.
The positions thus obtained enable the patient’s mobility and transit to be activated, facilitating
care, such as diapering, grooming and toileting.

Standard lithium battery avoids extra operating costs.

The ECP model has a wide mechanical or electric base, making it compatible with all types of chair. Its removable platform allows it to be used as a strolling aid or a lowered platform.

Improved ride quality thanks to 100-diameter wheels with double ball bearings.

Optimize space in your warehouses and facilitate delivery with this 2-part breakable product.

SKU: WAYUPBLUEECP3-CBLI (ECP mécanique) WAYUPBLUE+3-CBLI (ECP électrique) Category:
Video
Description

Made in France

CE certified

Class 1 medical device

Maximum capacity: 150 kg

Lifting cylinder power: 6,000 N

Total weight with mechanical spacer: 32 kg

Total weight with electric spreader: 35 kg

Steel fabrication

Baked epoxy paint

Standard: NF EN ISO 10535 : 2021

Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty

Dimensions

Total length: 100 cm
Minimum useful height: 74.5 cm
Maximum useful height: 117 cm
Total height: 99 cm
Frame height: 11.5 cm
Minimum base width: 57 cm
Maximum base width with mechanical spacing: 81 cm
Max. base width with electrical spacer: 80 cm
Turning diameter: 112 cm
