WAYUP 5 ECPmechanical or electrical spacing

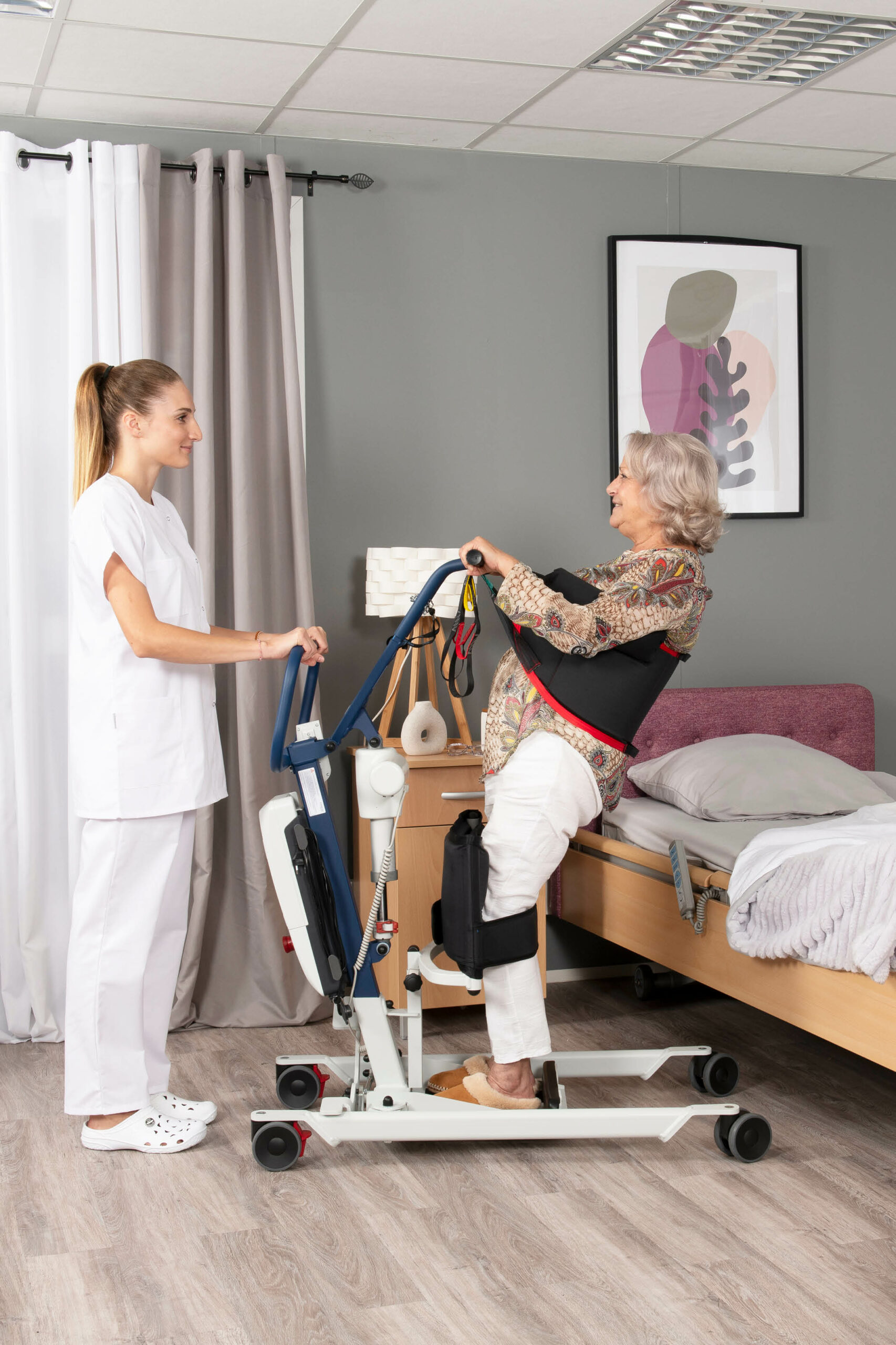

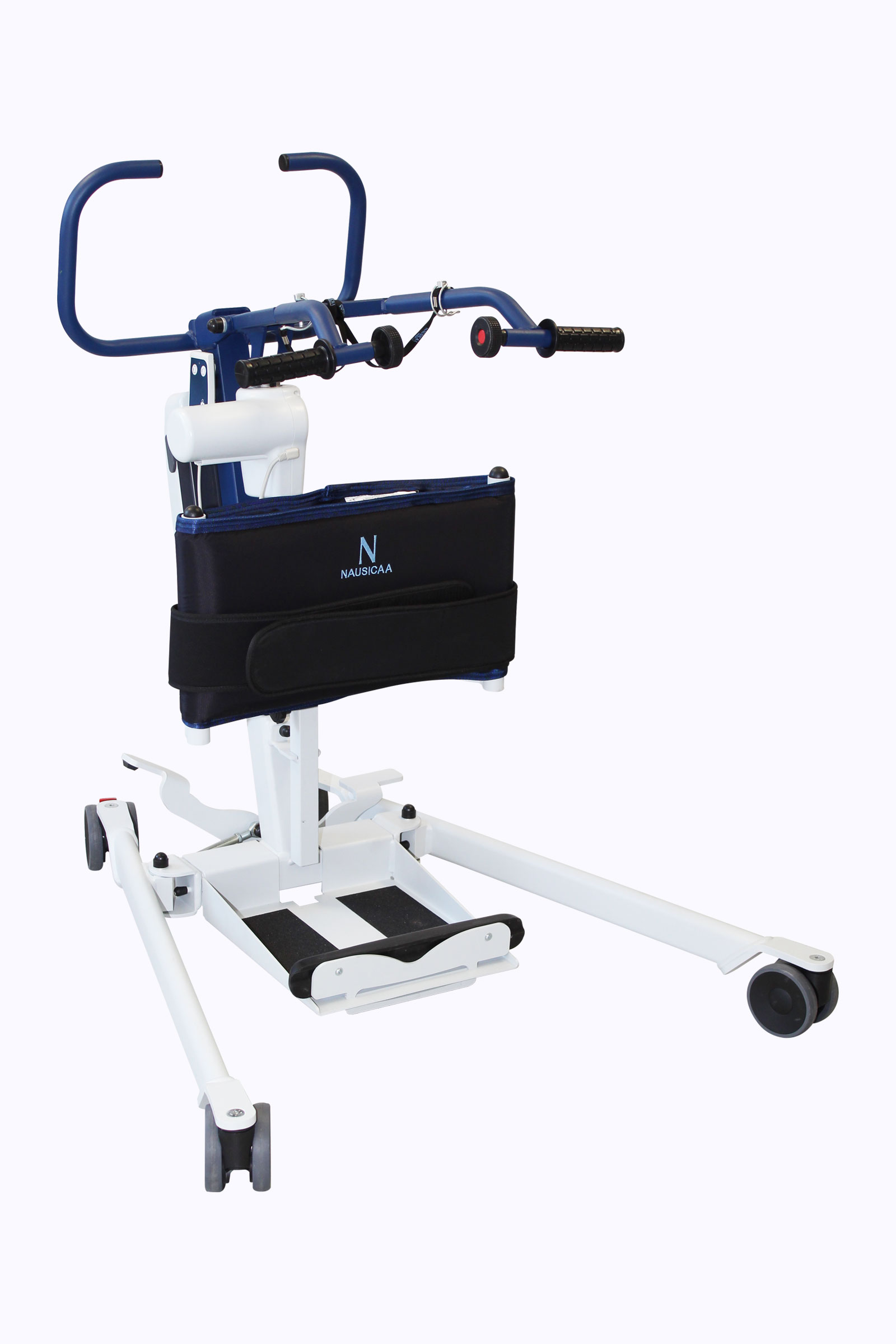

The new WAYUP 5 ECP is a vertical lift that can be adapted to all morphologies, enabling patients to stand upright while respecting the body’s natural elevation pattern.

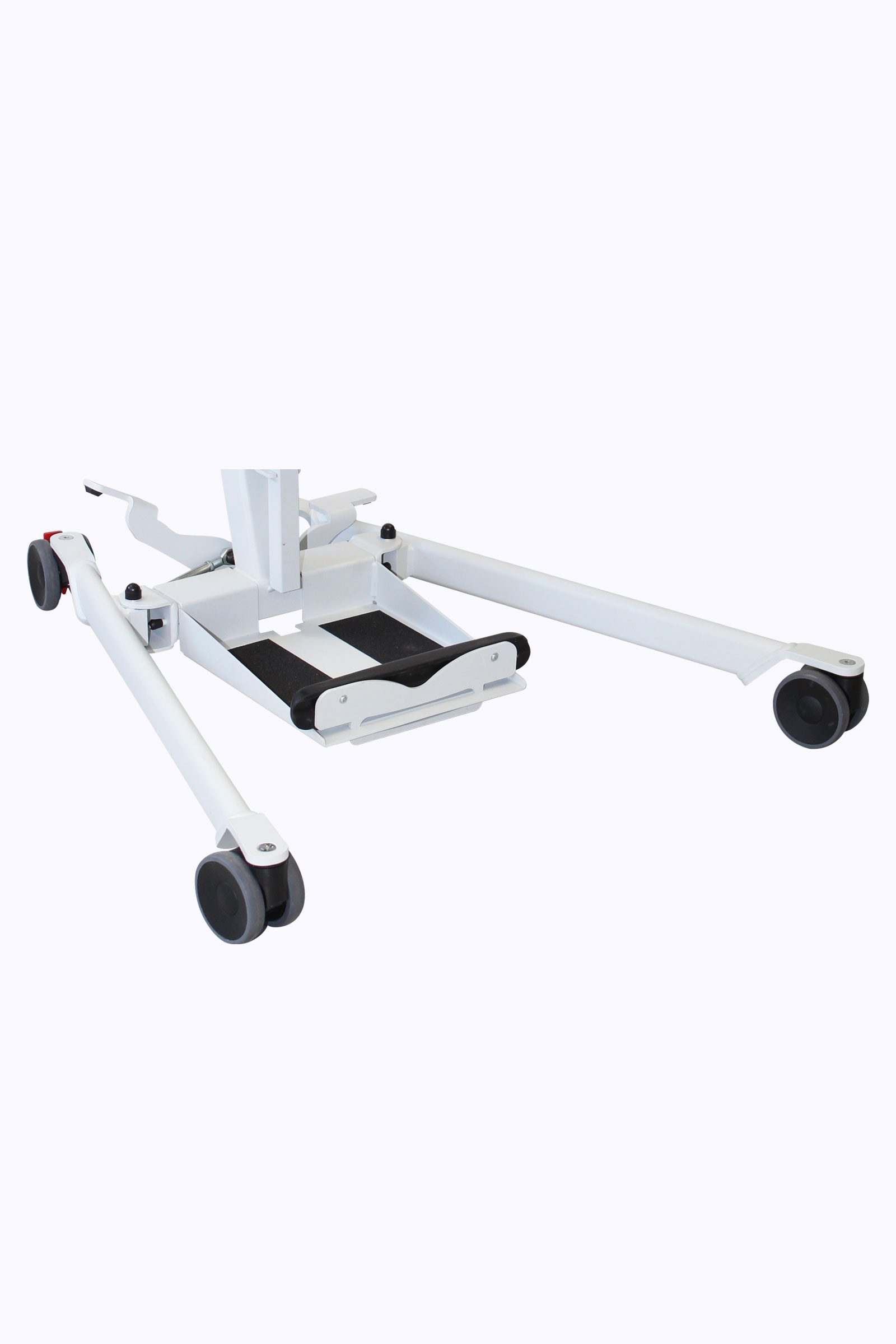

Its wide, mechanically spaced base allows a 90 cm opening width, making it compatible with a wide range of armchairs.

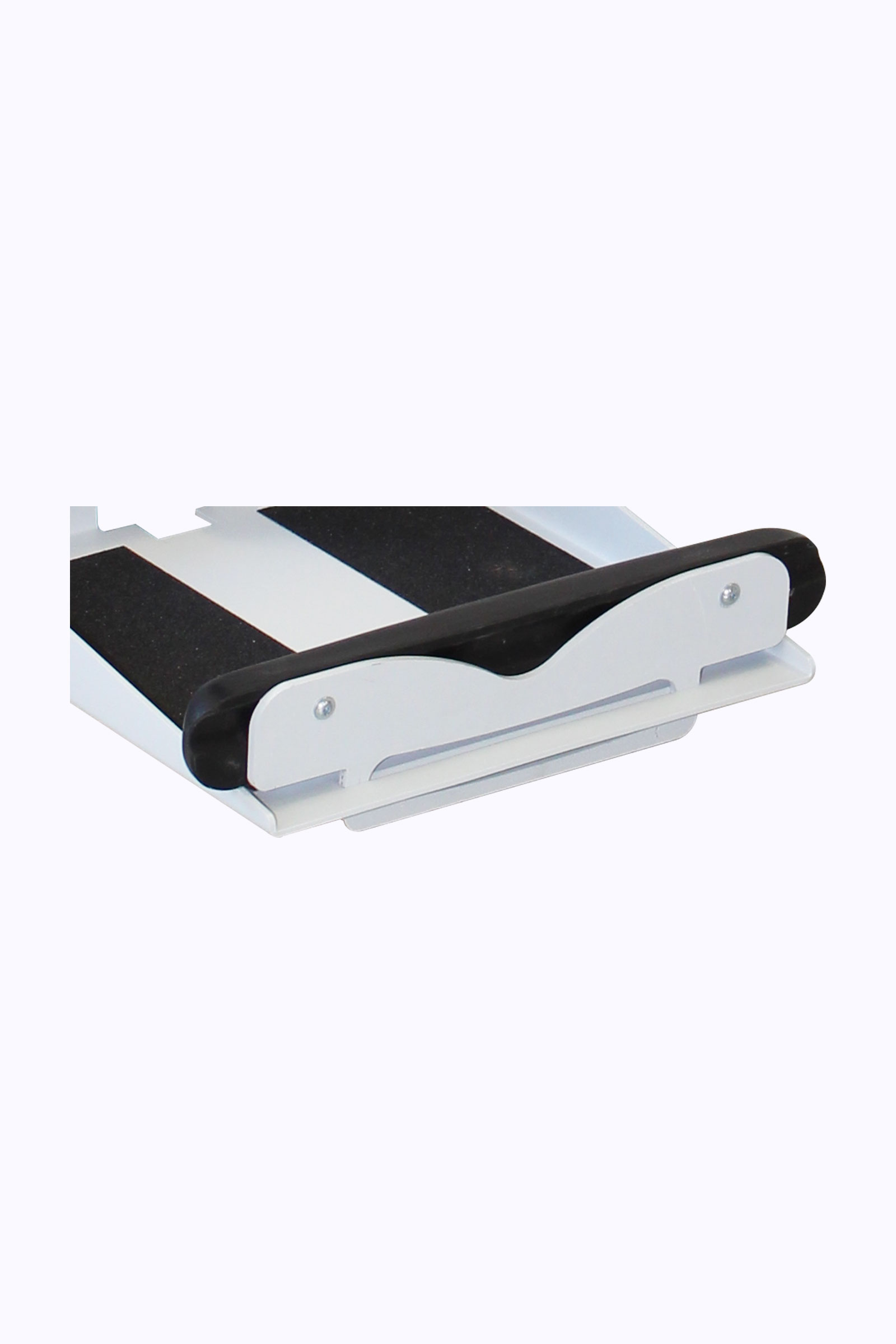

Its removable platform makes it easy to use as a walking aid.
NEW FEATURES

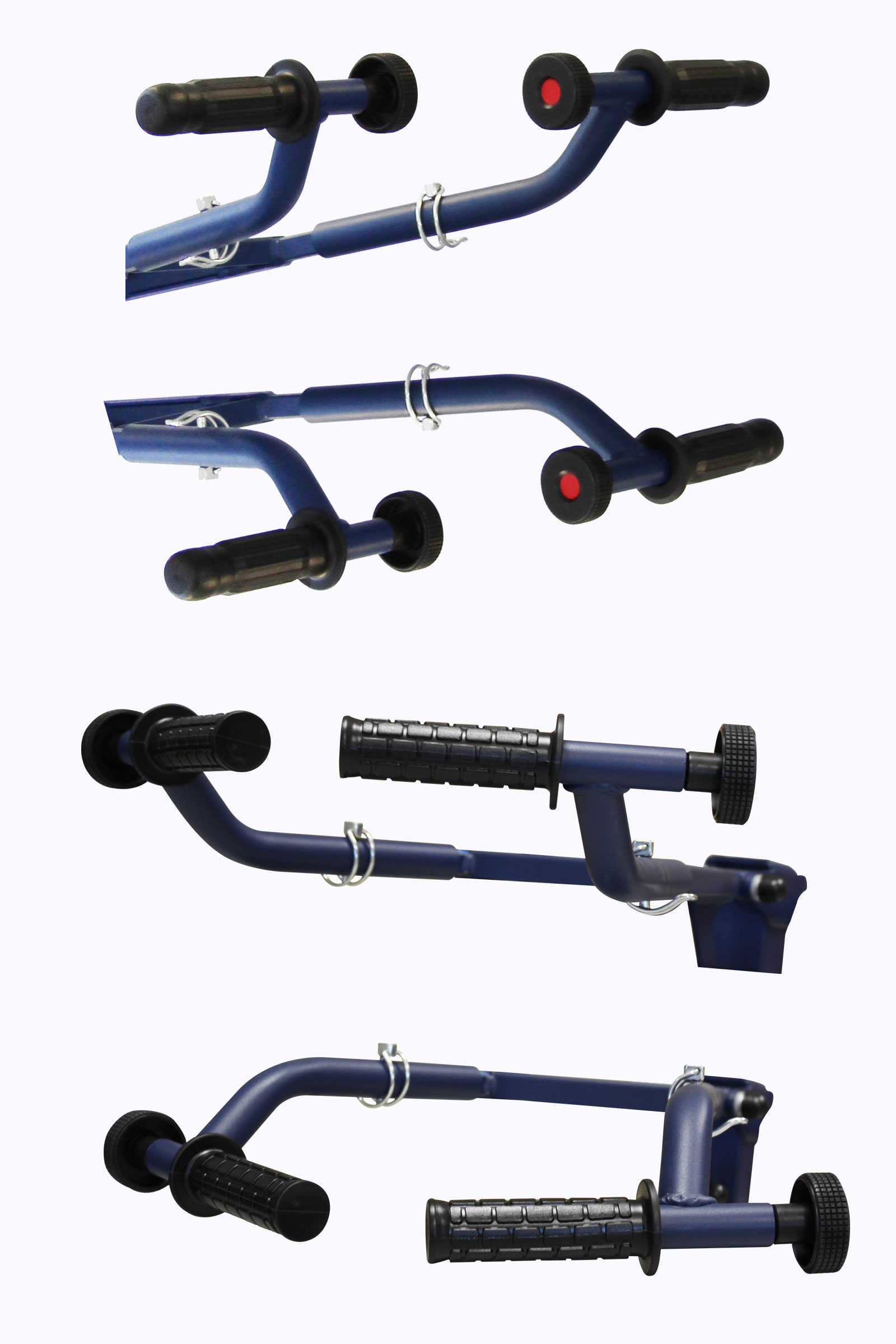

An adjustable lift arm that adapts to the patient’s morphology for more effective standing with 3 different lengths, plus specific asymmetrical positioning (for hemiplegic patients, for example).
The lifting arm is also reversible to respect the patient’s posture, with 4 possible settings: up, down, crossed (internal or external handles).

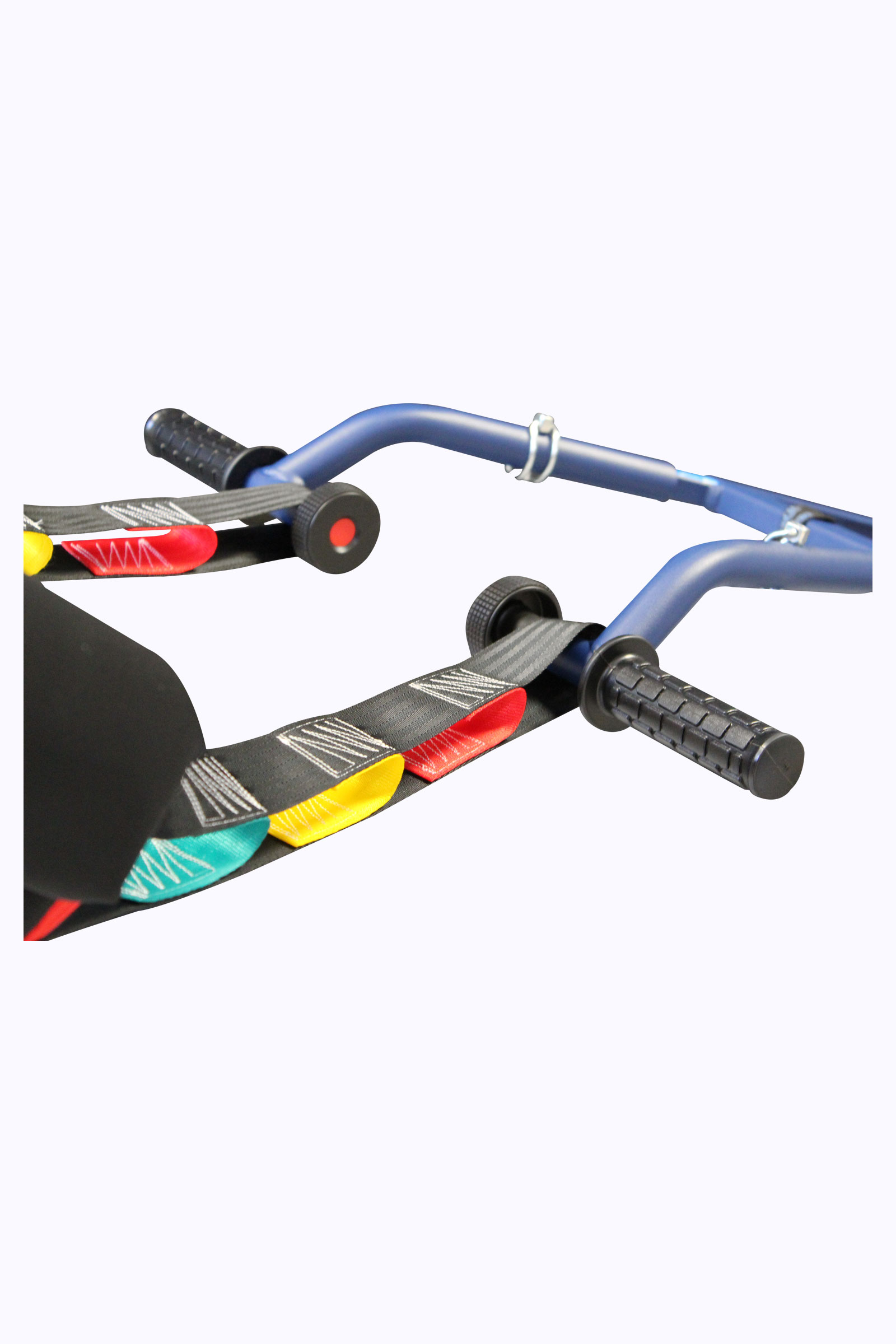

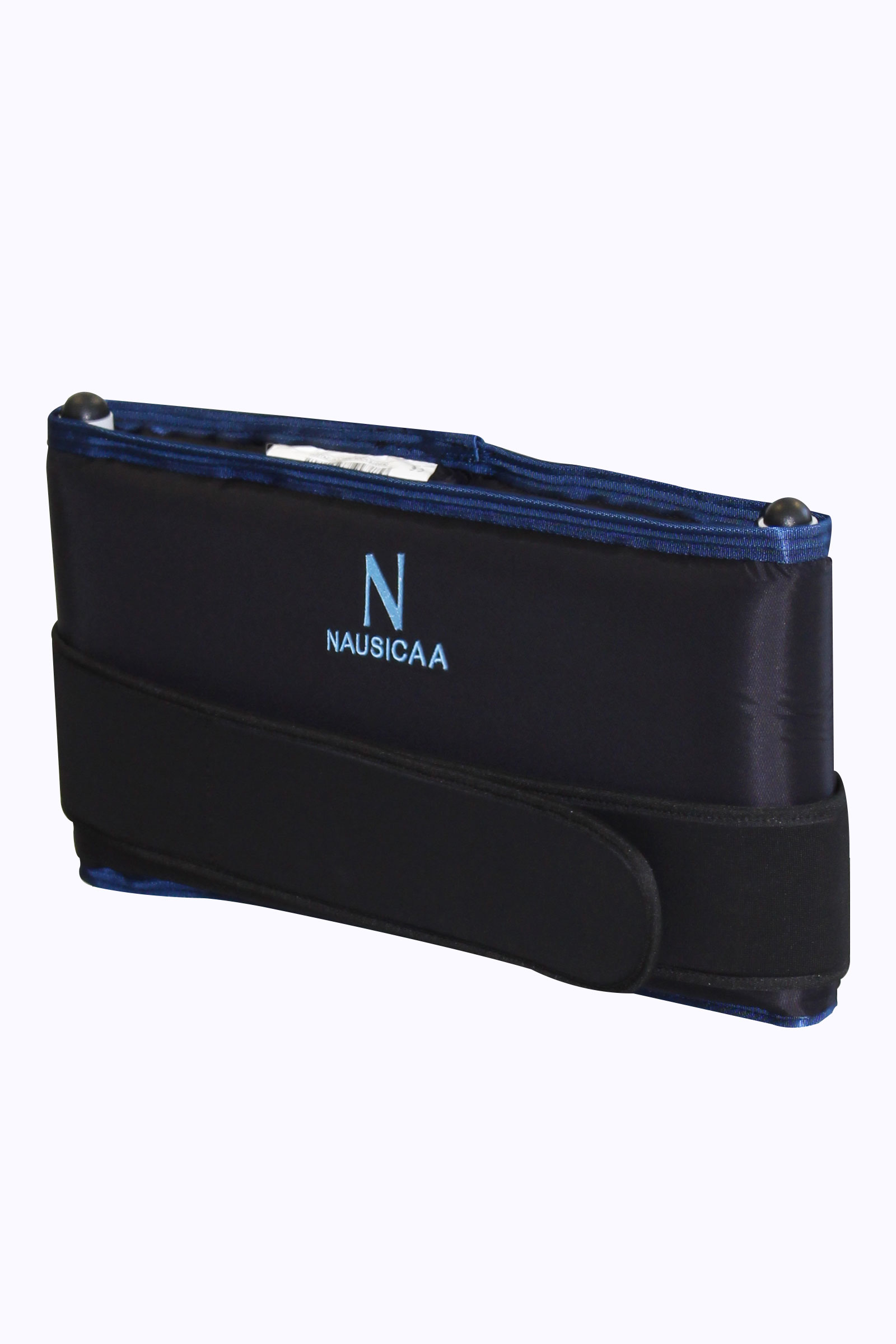

A new fastening system: the strap is attached from the inside of the device, making it easier to fasten.
Un appui-genoux ergonomique plus rapide, plus simple et plus confortable : – Sans contrainte de positionnement, ni de réglage
– Its design reduces the pressure exerted during lifting phases

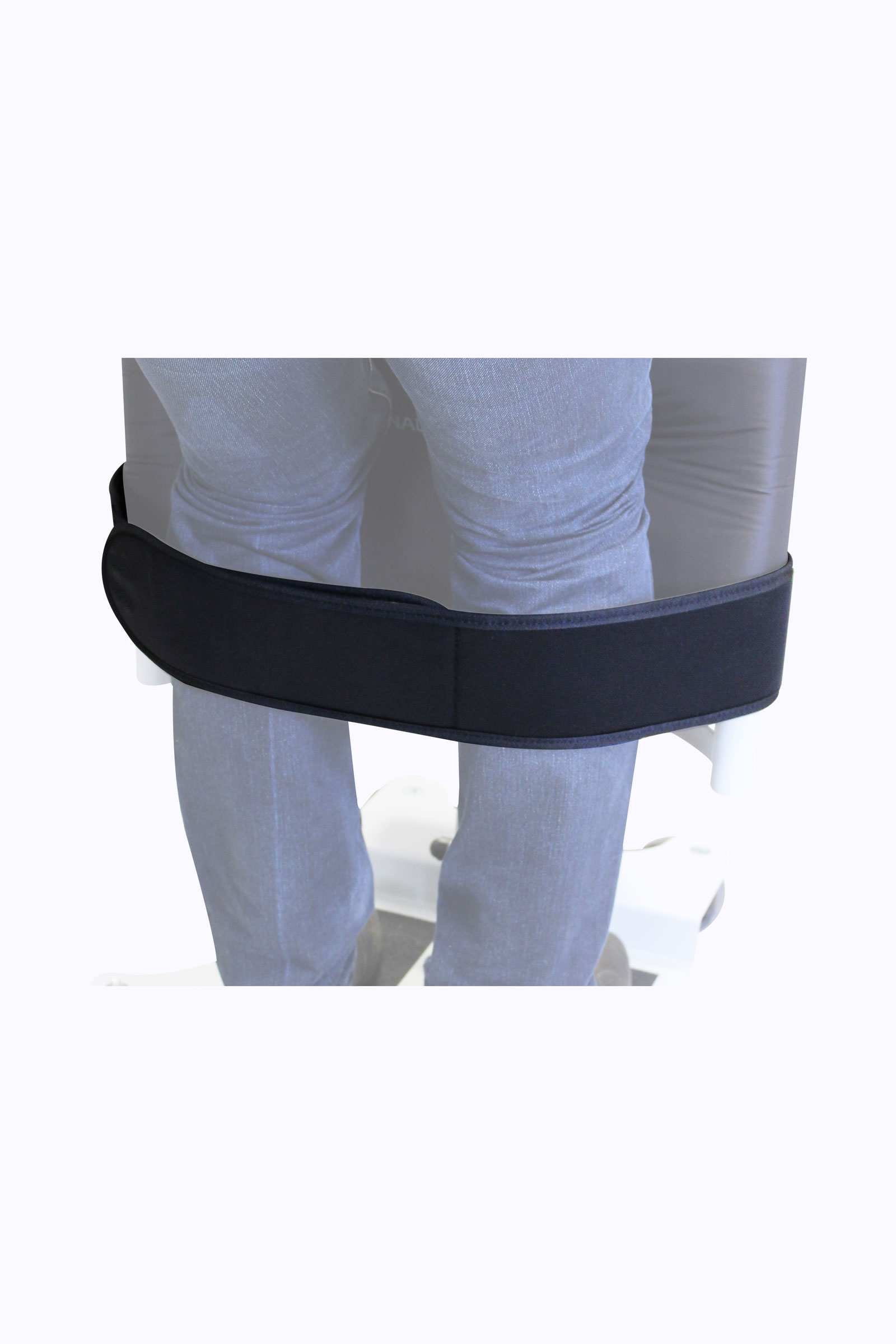

– Legs can be locked in place with the calf support strap
Maximum patient weight: improved capacity to handle patients up to 180 kg (compared with 150 kg on previous models)
Video
Description
Made in France
CE certified
Class 1 medical device
Maximum capacity: 180 kg
Lifting cylinder power: 8,000 N
Total weight with mechanical foot spacing: 36 kg
Total weight with electric foot spreader: 39 kg
Steel fabrication
Standard: NF EN ISO 10535: 2007
Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty
Dimensions
Total length: 107 cm
Minimum useful height: 82 cm
Max. useful height: 135 cm
Total height: 106 cm
Frame height: 11.5 cm
Minimum base width: 54 cm

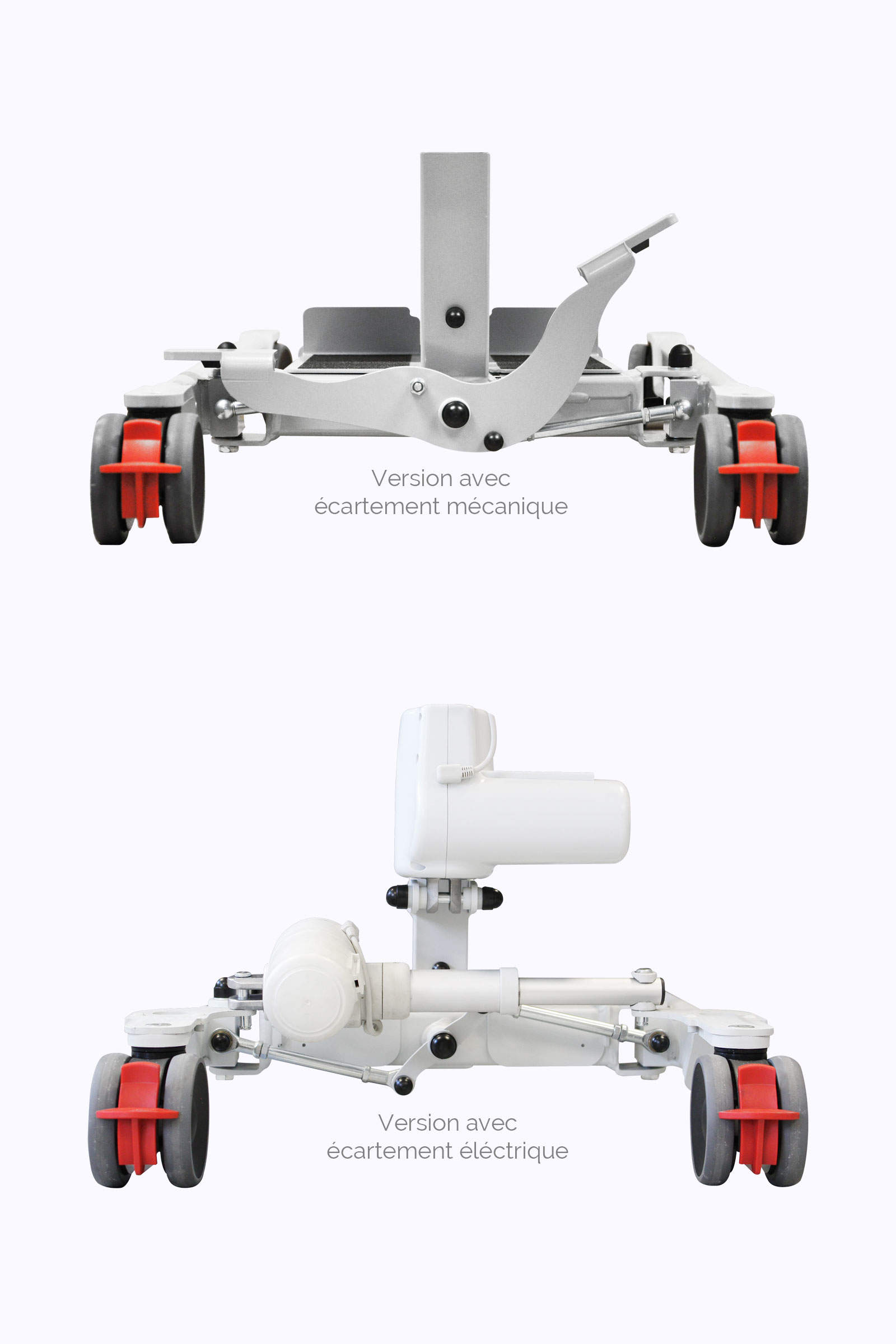

Maximum base width with mechanical spacing: 83 cm
Max. base width with electrical spacer: 80 cm
Turning diameter: 110 cm
Documents
WAYUP 5 with mechanical spacer
5. EU Declaration of Conformity
WAYUP 5 with electric spreader
Spare parts
WAYUP 5 with mechanical spacer
WAYUP 5 with electric spreader
Procedures
Changing the control box connection kit
Changing the emergency stop button
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
